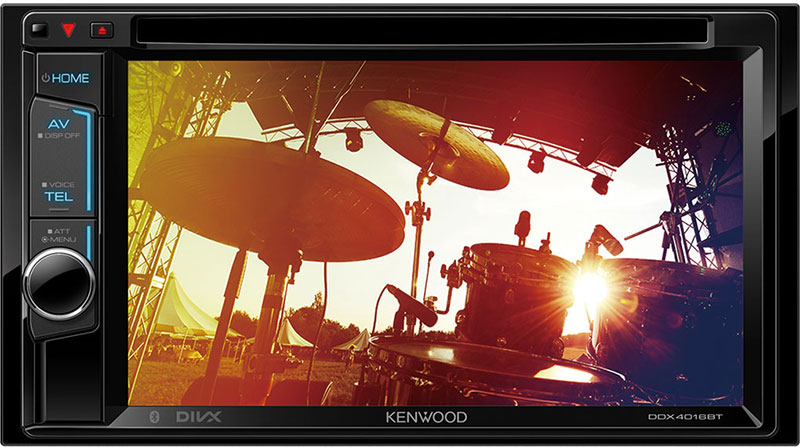

Kenwood DDX-4016BT - 6.2" WVGA USB/DVD-Receiver with built-in Bluetooth

Τεχνικά Χαρακτηριστικά

Key Features

• 6.2" Wide VGA Touch Screen
• Rotary Volume control
• Selectable language (21) for text & Menu
• RDS Tuner
• CD/DVD (Region 2)/USB
• Bluetooth Dual Phone Handsfree & Audiostreamng
• 3 RCA Highvoltage (4V) preouts
• 2AV inputs/1AV output/ Rear camera input with parking guide lines
• iPod/iPhone/Android MSC/AOA2 ready
• 13 Band EQ / Digital Time Aligment

General Features

• DIN Size: 2 DIN
• Disabled System Indicator (DSI)
• Security Code Function ( user set), (4 Digit Code)
• On Screen Display (OSD) Operation
• Smooth GUI
• Selectable GUI Background Wallpaper
• Key Illumination: Variable color
• Rotary Encoder & Control Knob
• Touch sensor
• Installer Memory
• Back-up Memory
• Attenuator with Smooth Volume Return
• Optional IR remote controller, (KCA-RCDV331)
• Digital Clock (24H)
• All-off Select (20/40/60 minutes)
• ISO connector
• Bluetooth unit built-in
• Optional navigation system unit
• Firmware upgreadable

Monitor Features

• Screen Type: 6.2" Wide VGA
• LCD backlight: LED
• Display Mode: 4 Mode (Full/Just/Zoom/Normal)
• High Resolution VGA Display
• Screen Adjustments: Brightness/Tint(NTSC only)/Colour/Contrast/Black Level/Sharpness
• Dimmer function: ON/OFF/Sync/Navi-Sync
• Dimmer Level: Auto/On/Off
• Visual Source Mode: DVD/Video/USB/iPod/App
• Touch Panel: Non Glare
• NTSC/PAL judge (Auto)

Multimedia GUI Features

• Variable Colour illumination
• Menu text in selectable language: 21 langauges: English (UK) (Default) ► English (US) ► Spanish ► French ► German ► Italian ► Dutch ► Russian ► Portuguese ► Chinese (Simplified) ► Chines ► Korean ► Thai ► Turkish ► Arabic ► Persian ► Hebrew ► GreeK ► Indonesian ► Polish ► Czech ► Hungarian
• Graphics Type: Graphics
• Demonstration Mode
• Background Customize, User + Preset
• Top Menu Customize
• Preset Wallpaper Type, 9 types
• Software updates (SoC): by USB
• Scroll Display
• R-CAM interrupt
• R-CAM Caution On Screen Display
• Parking Assistance / Parking Guide Lines: Built-in, customizable

Tuner Features

• Radio Data System
• Radio Text Plus
• ATomIC tuner
• Traffic Information
• FM Reception
• AM (MW/LW) Reception
• AF Regional: Selectable: AF/AF Reg/OFF
• Local search
• Auto TP search
• Tuner Presets (FM/AM): 20 Presets (15FM / 5AM)
• Station Select: List
• Up/Down Seek Tuning
• Tuning mode (Auto1 / Auto2 / Manual)
• FM Stereo / Mono Selector
• Program Type Function (PTY)
• Enhanced Other Networks Function (EON)

Bluetooth General Features

• Hands Free Profile (HPF): V1.6
• Hands Free Profile with High Sound Quality: HFP V1.6
• Advanced Audio Distribution Profile (A2DP), (AAC)
• Serial Port Profile (SPP)
• Phonebook Access Profile (PBAP), Accessible phonebook entries & alphabet search
• Generic Access Profile (GAP)
• Message Access Profile (MAP)
• Audio/Video Remote Control Profile (AVRCP), V 1.5 (Audio File browsing)
• Multi Profile Support
• iPhone & Android automatic pairing via USB
• Works with iPhone Siri
• 2 Phones Switchable Hands Free
• Dual phones connection
• Catchphone / Call Waiting
• Private mode
• Interrupt call request
• Voice Control
• Noise Canceller
• Echo Canceller
• Phone device status display
• Signal strength display
• Remaining battery display
• Bluetooth phones to register: 5
• High-quality noise canceling microphone
• Bluetooth firmware upgradeable

* depends on phone model/make: & Kenwood unit

DVD-Features

• Disc Capacity: 1 Disc(s)
• DVD±R/RW Compatible
• DVD Region Code: 2
• CD-R/RW Compatible
• CD Text
• MP3, WMA,AAC & WAV playback
• MPEG1/2 Video File (.mpg) Compatible
• JPEG File (.jpg) Compatible
• DivX
• CD-DA Repeat/Scan/Random play
• Direct Search
• Time Code Display
• Zoom Control (DVD/VCD)
• USB Features
• Rear USB Terminal
• USB Type: 2.0 Full speed
• Drive Change
• Kenwood Music Editor Lite Compatible
• Kenwood Music Control App for Android
• Android USB Mass Storage Class (MSC)
• Android Open Accessory support (AOA): V 2.0
• MP3, WMA, AAC & WAV playback
• DivX (Home Theather 3.1)
• MPEG1, MPEG2, JPEG
• JPEG slide show
• Zoom control (movie/photo)
• Repeat / Random Play
• Direct search
• Resume play
• Time code display
• 1A current capability
• 1,5A charge (BC 1.2)
• iPod Features
• Made for iPod & iPhone *
• USB Direct Control (Audio, 1 wire, Lightning-connector): with optional cable KCA-iP103
• USB Direct Control (Audio & Video, 2 wire, 30-pin connector): with optional KCA-iP202
• USB Direct Control (Audio & Video, Lightning-connector): With optional cable KCA-HD100, KCA-iP103 & Apple Lightning to HDMI AV adapter
• Album art support
• Music library search
• Control by hand
• App & iPod control mode
• iTunes Radio App iAP2
• 2 Speed search
• Reverse browsing
• Voice Control using Siri.
• Works with iPod Classic *: 80G, 120G & 160G
• Works with iPod Video *: 5th/6th generation
• Works with iPod Touch *: 2nd/3rd/4th & 5th*** generation
• Works with iPod Nano *: 3rd/4th/5th/6th/7th*** generation
• Works with iPhone *: 3G, 3GS,4,4S, 5, 5S, 5C, 6, 6Plus
• Bluetooth Auto Paring for iPhone
• Battery charge + power control

* Always update to latest Apple firmware:
** Apple Lightning - 30 pin adapter required:
*** In case of Apple Unit with Lightning Connector only Audio playback
Audio features

• Max. Output Power (MOSFET Power IC): 4 x 50W
• Pre-out: 3RCA: Front/Rear/Subwoofer
• Volume Offset
• Low Pass Filter (LPF)
• Subwoofer Reference Level Adj.
• High Pass Filter (HPF)
• Balance/Fader Control
• Loudness Control
• Bass Boost
• Att.(-20dB) with smooth Volume Return
• Multimedia DSP Features
• Position Control
• Position Preset: 4
• Position Cabin Size
• Graphic equalizer
• G-EQ: 13 bands
• G-EQ KBS
• G-EQ manual setting
• G-EQ f0 Qty, 4
• G-EQ adjustable level, -9dB / -9dB
• Time Alignment: 0cm ~ 610cm
• High Pass Filter
• HPF Cut Off Frequency: 14
• HPF Cut Slope Level: 4
• Low Pass Filter (Non-Fading)
• LPF Cut Off Frequency: 14
• LPF Cut Slope Level: 4
• Cross-over
• Source DSP Memory
• Speaker Size Control
• Car type control
• Channel Level Control
• Space Enhancer
• SupremeV
• Realizer
• Loudness
• Bass Boost
• Drive EQ

Video Features

• Audio/Video Input
• iPod AV input switchable to additional AV input
• Video-In for Rear-view Camera: 1 dedicated NTSC video input (RCA)
• Detection Mode Rear View Camera: Reverse sensor wire
• (Rear) camera display view control
• Parking Guide Line
• RGB Input For Navigation System
• Advanced navigation terminal

Connectivity

• iPod Digital Connection (1 Wire), KCA-iP102 (40pin) - KCA-iP103 (Lightning)
• OEM Wired Remote Control
• Parking sensor wire
• Reverse sensor wire
• Power Control (P.CON) wire
• 2-way (Tel/Navi) mute wire
• AV-Input (Switchable iPod / AV2-in)
• Rear View Camera Input
• Advanced navigation RGB terminal
• FM Antenna Input
• External microphone input (mini-jack)

Tuner Specifications

• FM range: 87.5Mhz - 108MHz (50Khz step)
• FM Usable Sensitivity: 0.71μV/75ohm (S/N 8.2dB)
• FM Quieting Sensitivity: 2μV/75ohm (S/N 17.2dB)
• FM Frequency Response: 30Hz ~ 15kHz (± 3dB)
• FM Signal to noise ratio (Mono): 64dB
• FM Selectivity(DIN): over 80dB (±400kHz)
• FM Stereo Separation (1kHz): 40dB
• MW range: 531kHz - 1611kHz (9kHz step)
• MW Usable Sensitivity: 28.5μV
• LW range: 153kHz - 279kHz (9kHz step)
• LW Usable Sensitivity: 45μV

Bluetooth specifications

• Technology: Bluetooth V3.0
• Frequency: 2.402 - 2.48 GHz
• Output power: +4dBm(max), 0dBm (AVE) power class 2
• Maximum range: Line of sight approx. 10 meter
• Handsfree profile (HFP), V 1.6
• Serial port profile (SPP), V 1.2
• Service discovery protocol (SDP)
• Advanced audio distribution profile (A2DP), V 1.3
• Audio Codec: SBC/AAC
• Audio/Video remote control profile (AVRCP), V 1.5
• Generic access profile (GAP)
• Phonebook access profile (PBAP), V 1.2

DVD Specifications

• D/A Converter: 24 bit
• Video decoder: MPEG1/MPEG2/DivX
• Audio decoder: Linear PCM/Dolby Digital/MP3/WMA/AAC/WAV
• Wow & Flutter: Below Measurable Limit
• Freq. Resp. (96kHz Sampling): 20Hz ~ 22kHz
• Freq. Resp. (48kHz Sampling): 20Hz ~ 22kHz
• Freq. Resp. (44,1kHz Sampling): 20Hz ~ 20kHz
• Total Harmonic Distortion: 0.01% (1kHz)
• Signal to Noise Ratio: 99dB (1kHz)
• Dynamic Range: 99dB
• Disc Format: DVD-Video/Video-CD/CD-DA
• Sample Frequency: 96k, 48k, 44,1k
• Quantifying bit number: 16/20/24bit

USB Specifications

• USB Version compatibility: 2.0 Full Speed
• File System: FAT 16/32
• Maximum Supply current: 1500mA
• D/A Converter: 24 bit
• Video Decoder: MPEG1/MPEG2/DivX
• Audio Decoder: MP3/WMA/AAC/WAV

Audio Specifications

• Maximum Power: 50W x 4
• Output Power (DIN45324,+B=14.4v): 22W x 4
• Preout Level: 4mV / 10kOhm,
• Preout Impedance: ≤ 600Ohm
• Speaker Impedance: 4Ohm ~ 8Ohm
• Graphical Equalizer: 13-Band
• G. EQ. Frequency (Hz): 62,5Hz - 16kHz
• G. EQ. Gain (dB): -8/-7/-6/.../-1/0/1/.../6/7/8
• Subwoofer Level (dB): -50 dB to +10dB

Video Specifications

• Color System of External Video Input: NTSC/PAL
• External video input level (mini-jack): 1 Vpp / 75 Ohm
• External audio max. input level (mini-jack): 2 Vpp / 25 kOhm
• Analog RGB Input: 0.7 Vpp / 75 Ohm
• Video input level (RCA): 1 Vpp, 75 Ohms
• Video Output Level (RCA): 1 Vpp / 75 Ohm

Monitor Specifications

• Screen size (Diagonal): 6.2 Inches Wide
• Screen Size (WxH): 137.5 x 77.2mm
• Display system: Transparent TN LCD Panel
• Drive system: TFT Active Matrix System
• Number of Pixels: 1152000pixels (800(H) x 480(V) x RGB)
• Effective pixels: 99.99%
• Pixel arrangement: RGB Striped
• Back lighting: LED (Light Emitting Diode)

General Specifications

• Operating voltage: 14.4V (10.5 ~ 16V Allowable)
• Maximum Current Consumption: 10A
• Dimensions (WxHxD): 182 x 111 x 165mm
• Weight: 1700gr

Accessories

• Release keys: 2 pieces
• Escutcheon
• Installation Sleeve
• DC cord (Molex to ISO): 25 cm
• Handsfree Microphone: with 2.5 m cable
